Catalogue of our peltier modules

Peltier Modules Application Notes PDF 197Kb
E-Catalogue
S = Silicon Sealed, HT = Max. Working temperature 225°C (non-HT types 138°C)
Thermoelectric Peltier module
  • Size 15x15x3.5mm (WxDxH), weight 6g
  • Imax 8.5A, Umax 2.0V, R = 0.21 ohm, 17 couples
  • TEC1-01708 ΔT max. = 68°C, Qmax (ΔT =0) 9.5W
  • TEC1-01708S ΔT max. = 67°C, Qmax (ΔT =0) 9.5W
Thermoelectric Peltier module
  • Size 20x20x3.5mm (WxDxH), weight 8g
  • Imax 8.5A, Umax 3.7V, R = 0.40 ohm, 31 couples
  • TEC1-03108 ΔT max. = 68°C, Qmax (ΔT =0) 17.6W
Thermoelectric Peltier module
  • Size 25x25x3.5mm (WxDxH), weight 11g
  • Imax 8.0A, Umax 5.9V, R = 0.57 ohm, 49 couples
  • TEC1-04908 ΔT max. = 66°C, Qmax (ΔT =0) 30W
Thermoelectric Peltier module
  • Size 30x30x4.7mm (WxDxH), weight 14g
  • Imax 3.3A, Umax 8.5V, R = 1.94 ohm, 71 couples
  • TEC1-07103 ΔT max. = 68°C, Qmax (ΔT =0) 18.0W
  • TEC1-07103HTS ΔT max. = 67°C, Qmax (ΔT =0) 18.0W
Thermoelectric Peltier module
  • Size 30x30x3.5mm (WxDxH), weight 17g
  • Imax 8.5A, Umax 8.5V, R = 0.85 ohm, 71 couples
  • TEC1-07108 ΔT max. = 68°C, Qmax (ΔT =0) 40.0W
  • TEC1-07108S ΔT max. = 67°C, Qmax (ΔT =0) 40.0W
  • TEC1-07108HT ΔT max. = 68°C, Qmax (ΔT =0) 40.0W
Thermoelectric Peltier module
  • Size 30x30x4.0mm (WxDxH), weight 14g
  • Imax 2.5A, Umax 15.4V, R = 3.85-4.15 ohm, 127 couples
  • TES1-12702 ΔT max. = 66°C, Qmax (ΔT =0) 18W
Thermoelectric Peltier module
  • Size 30x30x3.3mm (WxDxH), weight 14g
  • Imax 3.2A, Umax 15.4V, R = 3.85 ohm, 127 couples
  • TES1-12703 ΔT max. = 68°C, Qmax (ΔT =0) 30.0W
  • TES1-12703S ΔT max. = 67°C, Qmax (ΔT =0) 30.0W
Thermoelectric Peltier module
  • Size 30x30x3.3mm (WxDxH), weight 16g
  • Imax 4.3A, Umax 15.4V, R = 3.10 ohm, 127 couples
  • TES1-12704 ΔT max. = 68°C, Qmax (ΔT =0) 40.0W
  • TES1-12704S ΔT max. = 67°C, Qmax (ΔT =0) 40.0W
Thermoelectric Peltier module
  • Size 40x40x4.4mm (WxDxH), weight 30g
  • Imax 3.3A, Umax 24V, R = 4.55-4.75 ohm, 199 couples
  • TEC1-19903 ΔT max. = 65°C, Qmax (ΔT =0) 47.5W
Thermoelectric Peltier module
  • Size 40x40x4.7mm (WxDxH), weight 31g
  • Imax 3.3A, Umax 15.4V, R = 3.42 ohm, 127 couples
  • TEC1-12703 ΔT max. = 68°C, Qmax (ΔT =0) 38.0W
  • TEC1-12703S ΔT max. = 67°C, Qmax (ΔT =0) 38.0W
  • TEC1-12703HT ΔT max. = 68°C, Qmax (ΔT =0) 38.0W
  • TEC1-12703HTS ΔT max. = 67°C, Qmax (ΔT =0) 38.0W
Thermoelectric Peltier module
  • Size 40x40x4.7mm (WxDxH), weight 31g
  • Imax 4A, Umax 15.4V, R = 2.85-3.15 ohm, 127 couples
  • TEC1-12704 ΔT max. ≥ 66°C, Qmax (ΔT =0) 33.4W
Thermoelectric Peltier module
  • Size 40x40x4.0mm (WxDxH), weight 29g
  • Imax 5.3A, Umax 15.4V, R = 2.20 ohm, 127 couples
  • TEC1-12705 ΔT max. = 68°C, Qmax (ΔT =0) 57.0W
  • TEC1-12705S ΔT max. = 67°C, Qmax (ΔT =0) 57.0W
  • TEC1-12705HT ΔT max. = 68°C, Qmax (ΔT =0) 57.0W
Thermoelectric Peltier module
  • Size 40x40x3.9mm (WxDxH), weight 27g
  • Imax 6.4A, Umax 15.4V, R = 1.98 ohm, 127 couples
  • TEC1-12706 ΔT max. = 68°C, Qmax (ΔT =0) 63.0W
  • TEC1-12706S ΔT max. = 67°C, Qmax (ΔT =0) 57.0W
  • TEC1-12706HTS ΔT max. = 67°C, Qmax (ΔT =0) 57.0W
Thermoelectric Peltier module
  • Size 40x40x3.5mm (WxDxH), weight 25g
  • Imax 7.4A, Umax 15.4V, R = 1.80 ohm, 127 couples
  • TEC1-12707 ΔT max. = 68°C, Qmax (ΔT =0) 75.0W
  • TEC1-12707HT ΔT max. = 68°C, Qmax (ΔT =0) 75.0W
  • TEC1-12707HTS ΔT max. = 66°C, Qmax (ΔT =0) 75.5W
Thermoelectric Peltier module
  • Size 40x40x3.5mm (WxDxH), weight 23g
  • Imax 8.5A, Umax 15.4V, R = 1.55 ohm, 127 couples
  • TEC1-12708 ΔT max. = 68°C, Qmax (ΔT =0) 85.0W
  • TEC1-12708S ΔT max. = 67°C, Qmax (ΔT =0) 85.5W
  • TEC1-12708HTS ΔT max. = 66°C, Qmax (ΔT =0) 85.0W
Thermoelectric Peltier module
  • Size 40x40x3.4mm (WxDxH), weight 26g
  • Imax 9A, Umax 15.4V, R = 1.25-1.40 ohm, 127 couples
  • TEC1-12709 ΔT max. = 66°C, Qmax (ΔT =0) 73W
Thermoelectric Peltier module
  • Size 40x40x3.3mm (WxDxH), weight 26g
  • Imax 10.5A, Umax 15.4V, R = 1.08 ohm, 127 couples
  • TEC1-12710 ΔT max. = 68°C, Qmax (ΔT =0) 100.0W
  • TEC1-12710S ΔT max. = 67°C, Qmax (ΔT =0) 100.0W
  • TEC1-12710HT ΔT max. = 67°C, Qmax (ΔT =0) 100.0W
  • TEC1-12710HTS ΔT max. = 66°C, Qmax (ΔT =0) 100.0W
Thermoelectric Peltier module
  • Size 40x40x3.1mm (WxDxH), weight 30g
  • Imax 12A, Umax 15.4V, R = 0.95-1.25 ohm, 127 couples
  • TEC1-12712-40 ΔT max. = 66°C, Qmax (ΔT =0) 120W
Thermoelectric Peltier module
  • Size 50x50x3.9mm (WxDxH), weight 50g (Jumbo Junior)
  • Imax 15.6A, Umax 15.4V, R = 0.80 ohm, 127 couples
  • TEC1-12715 ΔT max. = 68°C, Qmax (ΔT =0) 150 W
  • TEC1-12715S ΔT max. = 67°C, Qmax (ΔT =0) 150 W
  • TEC1-12715HT ΔT max. = 68°C, Qmax (ΔT =0) 150 W
  • TEC1-12715HTS ΔT max. = 67°C, Qmax (ΔT =0) 150 W
Thermoelectric Peltier module
  • Size 50x50x4.1mm (WxDxH), weight 65g
  • Imax 12A, Umax 15.4V, R = 0.95-1.05 ohm, 127 couples
  • TEC1-12712-50 ΔT max. = 66°C, Qmax (ΔT =0) 120W
Thermoelectric Peltier module
  • Size 62x62x3.9mm (WxDxH), weight 90g (Jumbo)
  • Imax 30.7A, Umax 15.4V, R = 0.35 ohm, 127 couples
  • TEC1-12730 ΔT max. = 68°C, Qmax (ΔT =0) 350 W
  • TEC1-12730S ΔT max. = 67°C, Qmax (ΔT =0) 350 W
TEC1-06306-TEC1-06315
MOQ: 50pcs/Per type

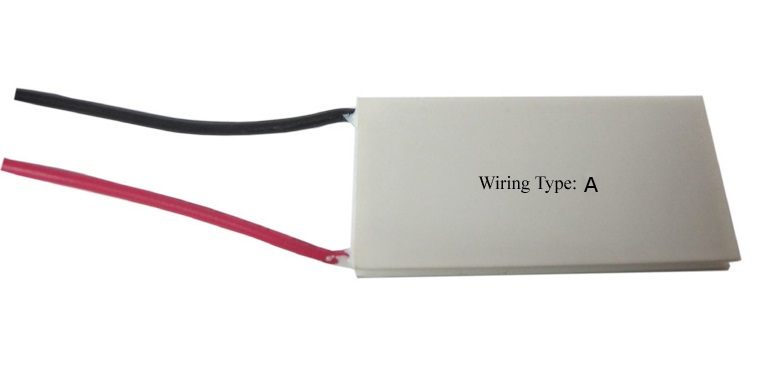

Please included the wiring type in your order (A/B)
Thermoelectric Peltier module
Thermoelectric Peltier module
  • Size 40x20x3.9mm (WxDxH), weight 17g
  • TEC1-06306 ΔT max. ≥ 63°C, Qmax (ΔT =0) 42W
  • Imax 6A, Umax 7.6V, R = 0.95-1.05 ohm, 63 couples
  • Size 40x20x3.9mm (WxDxH), weight 17g
  • TEC1-06308 ΔT max. ≥ 63°C, Qmax (ΔT =0) 32W
  • Imax 8.5A, Umax 7.6V, R = 0.65-0.75 ohm, 63 couples
  • Size 40x20x3.3mm (WxDxH), weight 17g
  • TEC1-06310 ΔT max. ≥ 63°C, Qmax (ΔT =0) 45W
  • Imax 7.5A, Umax 7.5V, R = 0.55-0.65 ohm, 63 couples
  • Size 40x20x3.1mm (WxDxH), weight 17g
  • TEC1-06312 ΔT max. ≥ 63°C, Qmax (ΔT =0) 55W
  • Imax 9.5A, Umax 7.5V, R = 0.45-0.55 ohm, 63 couples
  • Size 40x20x3.1mm (WxDxH), weight 17g
  • TEC1-06315 ΔT max. ≥ 63°C, Qmax (ΔT =0) 65W
  • Imax 12.5A, Umax 7.6V, R = 0.3-0.4 ohm, 63 couples
Number explantion: TEx1-yyyzz
x = Area of section of N/P (C = >1mm², S = <1mm²)
yyy = No. of couples
zz = max. current (A)
For high temperature module (225°C) add "HT", for sealed module add "S".

Examples for using Thermoelectric Peltier Modules:
Water Machines, Medical Equipments, Colling boxes and small fridges, Massagers, Electronic Parts cooling (Processors, Integrated circuits...) and many more.
